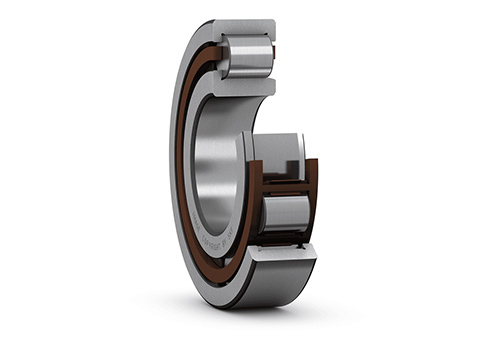

The rolling element is a radial rolling bearing of cylindrical rollers. The internal structure of the cylindrical roller bearing adopts the parallel arrangement of the rollers, and the spacers or spacers are installed between the rollers, which can prevent the inclination of the rollers or the friction between the rollers, and effectively prevent the increase of the rotation torque.

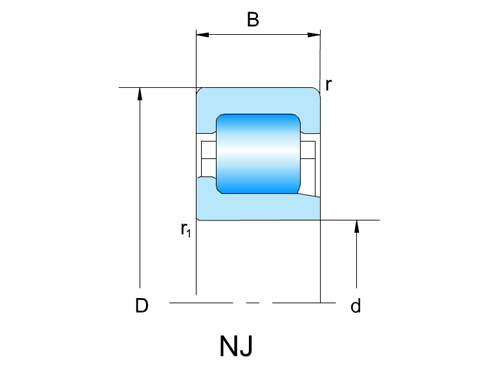

Cylindrical rollers and raceways are linear contact bearings. Load capacity, mainly bear radial load. The friction between the rolling element and the retaining edge of the ring is small, which is suitable for high-speed rotation. According to whether the ring has ribs, it can be divided into single row cylindrical roller bearings such as NU, NJ, NUP, N, NF, and double row cylindrical roller bearings such as NNU and NN. The bearing has a separable structure with inner ring and outer ring.
Cylindrical roller bearings with no ribs on the inner ring or outer ring, the inner ring and outer ring can move relative to the axial direction, so it can be used as a free end bearing. Cylindrical roller bearings with double ribs on one side of the inner ring and outer ring and a single rib on the other side of the ring can bear a certain degree of axial load in one direction. Generally, stamping steel cages or solid cages made of copper alloy cars are used. However, there is also a part of the use of polyamide forming cage.
